In modern manufacturing, the ability to shape materials without compromising strength, durability or transparency is a major asset. The material known as LEXAN Polycarbonate Sheet — commonly referred to in industry as “Lexan sheet” — is a high-performance polycarbonate thermoplastic sheet that combines optical clarity, exceptional impact resistance and dimensional stability. Its bending (or forming) into curved or custom shapes further expands its usage across architectural, construction, transportation, security and display sectors.

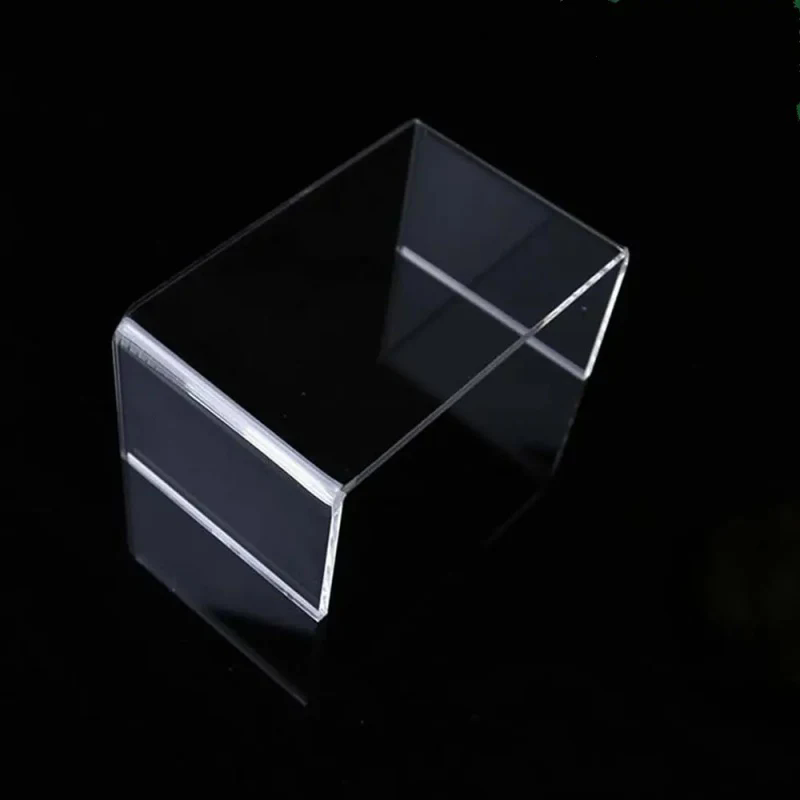

Bending Lexan sheet refers to the process of forming or curving a polycarbonate sheet material (under the trade name Lexan) into non-flat geometries while preserving its key material properties. The base material is polycarbonate (PC), a thermoplastic known for its transparency, high impact strength and heat resistance.
Key material and bending parameters for a typical Lexan sheet are summarised below:
| Parameter | Typical Value / Description |
|---|---|
| Material | Polycarbonate (thermoplastic) |
| Impact resistance | Up to ~ 200-250× greater than glass of the same thickness. |
| Temperature capability | Can withstand elevated temperatures before deforming (depending on grade) |
| Bending methods | Heat bending (thermoforming), cold bending for gentle curves |
| Minimum bend radius | For thicker sheets, large bend radius may be required (or heat must be applied) |
| Thickness range | Many sheet thicknesses available — e.g., 0.093 in, 0.118 in among others. (See product specifications) |
| Optical clarity | Transparent grades available, suitable for glazing, enclosure, display etc. |
By forming Lexan sheets into curved, bent or contoured shapes, designers and engineers can achieve elegant, seamless forms that would be difficult using flat sheets or alternate materials like glass or acrylic. The bending process increases design freedom while leveraging the material’s inherent advantages.
The decision to use bent Lexan sheet rather than flat or alternate materials is driven by a combination of mechanical, aesthetic and economic factors:
Lexan’s impact resistance far exceeds that of glass, making it highly suitable for demanding applications.This durability means bent Lexan components can be deployed in guard panels, machine enclosures, transparent protective covers or architectural glazing where safety and longevity are priorities.
Polycarbonate sheets weigh significantly less than comparable glass panels, thus reducing structural loading, simplifying transport and installation. This characteristic makes bent Lexan especially appealing in construction, façade systems and canopy designs.
As noted in fabrication literature, Lexan can be bent via heat forming or cold bending (for gentler curves) allowing a wide variety of shapes, arcs and assemblies.This flexibility supports both aesthetic and functional innovation—curved signage, modular glazing, canopy covers, display cases, curved machine guards, etc.
Lexan sheets, when appropriately coated or selected, offer UV resistance, high clarity retention and sustainability advantages in building systems (e.g., in glazing systems achieving energy efficiency or LEED credits).
Although polycarbonate may cost more upfront than standard glass or acrylic, the durability, longevity and reduced maintenance often justify the investment. For instance, avoiding frequent replacements or structural reinforcement yields long-term value.
The forming of Lexan sheets requires attention to process, equipment, tolerances and design constraints. The following steps describe a typical workflow:
Choose the correct grade of Lexan (e.g., general purpose, UV-stable, heat-formable) depending on the application (indoor vs outdoor, security vs display).
Confirm sheet thickness and size. Thicker sheets impose larger minimum bend radii or require heating. (For example, a ½-inch sheet may need industrial heating for tight bends)
Ensure the sheet is clean, flat and free of major surface defects before forming.
Design the curvature, specifying inside and outside bend radii, angle of bend and end-conditions (flanges, trims, supports).
Consider the minimum bend radius based on thickness and material behaviour: cold bending without heating is possible for slight curvature, but more complex shapes often require heat.
Account for spring-back, material relaxation and tolerances in the fixture or mould.
Cold bending: Without applying heat; suitable for gentle curves, thinner sheets, or low-stress applications. Minimal equipment required but curvature is limited.
Heat bending (thermoforming): Sheet is heated to its softening temperature (using strip heaters, ovens, infrared heaters) then bent over a form or mandrel, held until set and cooled to lock in shape. Common for tighter radii or complex profiles.
Secure the sheet in place during cooling to avoid deformation or warping.
Trim, drill or machine as required after bending (Lexan supports cutting and machining, but attention to heat build-up is essential).
Apply protective coatings or films if needed (UV protection, anti-scratch).
Inspect for stress marks, crazing or clouding — particularly around bends — and ensure optical clarity and structural integrity.
When installing bent Lexan components (e.g., curved glazing, canopy panels), allow for thermal expansion/contraction.
Provide adequate support to account for material flex and loading (snow, wind, impact).
Use appropriate fasteners and gaskets to avoid stress concentrations that could induce cracking.
Several emerging developments and market drivers are enhancing the relevance of bent Lexan sheet in design and fabrication:
Architects increasingly favour flowing, seamless forms — curved glazing, canopies, wave-style panels. The ability to bend Lexan sheets enables these aesthetics while meeting structural and safety criteria.
As sustainability and structural efficiency gain focus, materials that deliver high strength at lower weight become preferred. Bent Lexan sheet supports this by reducing framing requirements and easing installation logistics.
In sectors such as transportation, retail, banking and public infrastructure, transparent protective barriers (machine guards, teller windows, riot shields) benefit from the combination of impact resistance and custom curvature.
Improved UV-stable coatings, anti-scratch surfaces and multi-wall (honeycomb or sandwich) configurations enhance long-term performance. For example, curved multi-wall polycarbonate panels combining insulation and aesthetics.
Integration of CNC routers, robotic bending cells and digital moulding accelerates production of bent polycarbonate components, enabling higher precision and reduced labour cost.
Polycarbonate sheets such as Lexan are increasingly manufactured from recycled content or designed for end-of-life recyclability, aligning with green building certification goals.
Q1: Can Lexan sheet be bent without applying heat?
Yes. Lexan polycarbonate is a thermoplastic material and in many cases it can be cold-bent (i.e., bent at room or moderate temperature) for gentle curvature.However, the tighter the radius and the thicker the sheet, the more challenging cold bending becomes. For more significant bends or thicker panels it is recommended to use heat forming so as to avoid internal stresses, cracking or dimensional instability.
Q2: What are the limitations or risks when bending Lexan sheet?
While Lexan offers tremendous advantages, there are some considerations:
If the bend radius is too tight relative to the sheet thickness, the material may develop internal stress, warping, or surface crazing.
Uneven or excessive heating during thermoforming may lead to bubbles, distortion or optical defects.
Polycarbonate is more scratch-sensitive than glass and may degrade over time if not properly coated (especially outdoors).
Installation must allow for thermal expansion; inadequate support or improper fastening may result in buckling or cracking under load.
Bending Lexan sheet represents a convergence of material science, fabrication technique and design ambition—enabling curved, transparent, resilient panels that meet the demands of modern architecture, industrial safety, and creative enclosures. With its superior impact resistance, lightweight nature and formability, Lexan remains a top choice for applications where flat sheets fall short. The future of bent polycarbonate components lies in smarter fabrication, advanced coatings, sustainability and integration into lightweight structural systems.
At Andisco, the commitment to high-quality polycarbonate sheet supply and precision bending services ensures that customers across architecture, manufacturing and industrial markets receive tailored curved Lexan solutions. For more information on specifications, custom bending options or project consultation, contact us today.
